Jet Tech

Yellow Aircraft F-4 Fuel Tank

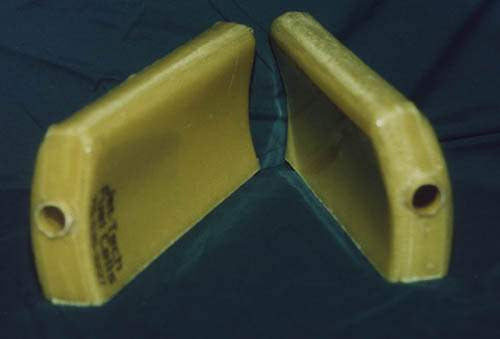

 Custom molded Kevlar tank designed to fit the Yellow Aircraft F-4. This tank design was submitted by Tam Nguyen to fit into the YA F-4.

Each tank measures 1.25" Thick 4.5" Tall and 8.875" Long and each tank carries 29 oz.

This tank is designed to supply maximum capacity that would be easily accessible and be close as possible to the C.G. The tanks hold 58 oz. of fuel. The tanks come assembled and pressure tested and includes the Jet Tech O-ring style Fuel Fittings.

This Jet Tech Tank is assembled using standard 1/8" ID fuel fittings and vent.  If you need 3/16" ID fittings please tell me in the "Note" box at time of check out or email me.

If this tank will be used for gasoline based fuels instead of Jet A or kerosine fuel then you must also order Gasoline Proof in addition to your tank order.  This will notify Jet Tech that gasolione proof resin must be substituted.
