Jet Tech

Hot Spot Fuel Tank

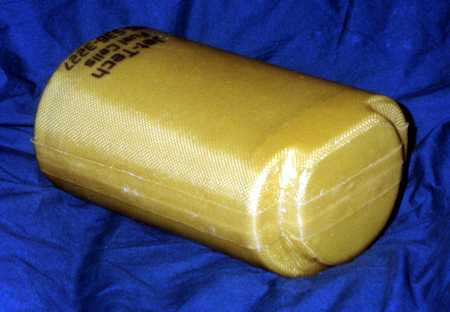

 Custom molded Kevlar tank designed to fit the Hot Spot Sport Jet distributed by GWM. This tank design was submitted by Bob Price to fit into the Hot Spot while it is being built.

 This tank is designed to supply maximum capacity that would be easily accessible, be close as possible to the C.G., fit into the Hot Spot with minimal design changes, and allow the builder to still use the dorsal speed brake with either a servo actuator or an air cylinder. The only change required is that the two rails supporting the nose gear be replaced with a bulk head and shorter rails. The tank holds 105 oz. of fuel. Included is the Jet Tech O-ring style Fuel Fittings. The rear round portion of the tank fits into a bulkhead to secure the tank.

This Jet Tech Tank is assembled using standard 1/8" ID fuel fittings and vent.  If you need 3/16" ID fittings please tell me in the "Note" box at time of check out or email me.



If this tank will be used for gasoline based fuels instead of Jet A or kerosine fuel then you must also order Gasoline Proof in addition to your tank order.  This will notify Jet Tech that gasolione proof resin must be substituted.
